pdb::AggregateComp< OutputClass, InputClass, KeyClass, ValueClass > Class Template Referenceabstract

#include <AggregateComp.h>

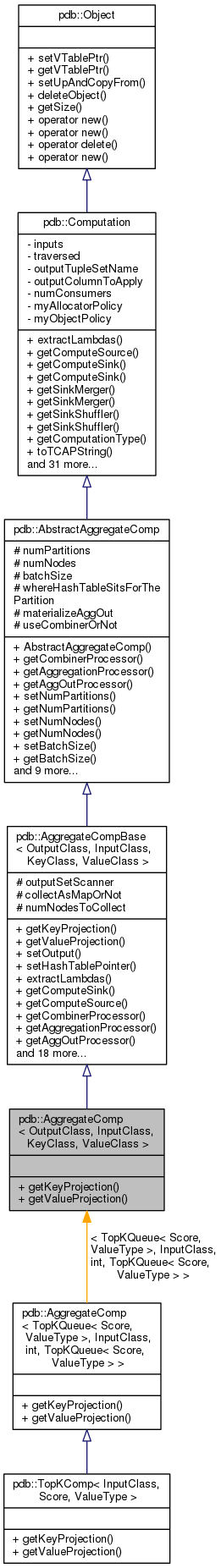

+ Inheritance diagram for pdb::AggregateComp< OutputClass, InputClass, KeyClass, ValueClass >:

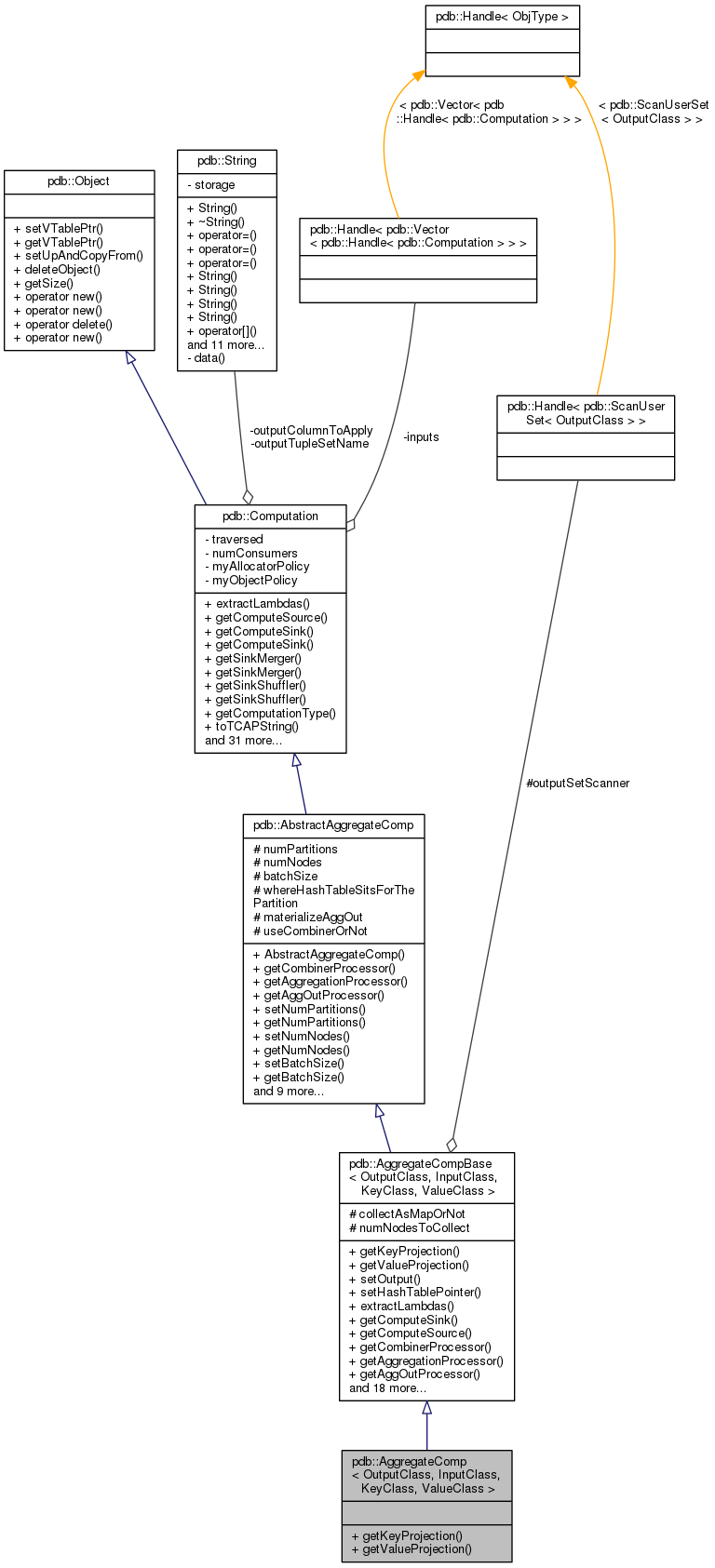

+ Collaboration diagram for pdb::AggregateComp< OutputClass, InputClass, KeyClass, ValueClass >:

Public Member Functions

virtual Lambda< KeyClass > getKeyProjection (Handle< InputClass > aggMe)=0

virtual Lambda< ValueClass > getValueProjection (Handle< InputClass > aggMe)=0

- Public Member Functions inherited from pdb::AggregateCompBase< OutputClass, InputClass, KeyClass, ValueClass >
void setOutput (std::string dbName, std::string setName) override

void setHashTablePointer (void *hashTablePointer)

void extractLambdas (std::map< std::string, GenericLambdaObjectPtr > &returnVal) override

ComputeSinkPtr getComputeSink (TupleSpec &consumeMe, TupleSpec &projection, ComputePlan &plan) override

ComputeSourcePtr getComputeSource (TupleSpec &outputScheme, ComputePlan &plan) override

SimpleSingleTableQueryProcessorPtr getCombinerProcessor (std::vector< HashPartitionID > partitions) override

SimpleSingleTableQueryProcessorPtr getAggregationProcessor (HashPartitionID id) override

SimpleSingleTableQueryProcessorPtr getAggOutProcessor () override

void setIterator (PageCircularBufferIteratorPtr iterator) override

void setProxy (DataProxyPtr proxy) override

void setDatabaseName (std::string dbName) override

void setSetName (std::string setName) override

std::string getDatabaseName () override

std::string getSetName () override

std::string getComputationType () override

ComputationTypeID getComputationTypeID () override

std::string getOutputType () override

int getNumInputs () override

std::string getIthInputType (int i) override

void setCollectAsMap (bool collectAsMapOrNot) override

bool isCollectAsMap () override

int getNumNodesToCollect () override

void setNumNodesToCollect (int numNodesToCollect) override

std::string toTCAPString (std::vector< InputTupleSetSpecifier > &inputTupleSets, int computationLabel, std::string &outputTupleSetName, std::vector< std::string > &outputColumnNames, std::string &addedOutputColumnName) override

std::string toTCAPString (std::string inputTupleSetName, std::vector< std::string > &inputColumnNames, std::vector< std::string > &inputColumnsToApply, std::vector< std::string > &childrenLambdaNames, int computationLabel, std::string &outputTupleSetName, std::vector< std::string > &outputColumnNames, std::string &addedOutputColumnName, std::string &myLambdaName)

Handle< ScanUserSet
< OutputClass > > & 		getOutputSetScanner ()

- Public Member Functions inherited from pdb::AbstractAggregateComp
 AbstractAggregateComp ()=default

void setNumPartitions (int numPartitions)

int getNumPartitions ()

void setNumNodes (int numNodes)

int getNumNodes ()

void setBatchSize (int batchSize) override

int getBatchSize ()

bool needsMaterializeOutput () override

void setHashTable (void *hashTableLocation)

bool isUsingCombiner () override

void setUsingCombiner (bool useCombinerOrNot) override

- Public Member Functions inherited from pdb::Computation
virtual ComputeSinkPtr getComputeSink (TupleSpec &consumeMe, TupleSpec &whichAttsToOpOn, TupleSpec &projection, ComputePlan &plan)

virtual SinkMergerPtr getSinkMerger (TupleSpec &consumeMe, TupleSpec &projection, ComputePlan &plan)

virtual SinkMergerPtr getSinkMerger (TupleSpec &consumeMe, TupleSpec &whichAttsToOpOn, TupleSpec &projection, ComputePlan &plan)

virtual SinkShufflerPtr getSinkShuffler (TupleSpec &consumeMe, TupleSpec &projection, ComputePlan &plan)
 JiaNote: add below interface for shuffling multiple join map sinks for hash partitioned join. More...

virtual SinkShufflerPtr getSinkShuffler (TupleSpec &consumeMe, TupleSpec &whichAttsToOpOn, TupleSpec &projection, ComputePlan &plan)

bool hasInput ()

Handle< Computation > & getIthInput (int i) const

int getNumConsumers ()

void setNumConsumers (int numConsumers)

bool setInput (Handle< Computation > toMe)

bool setInput (int whichSlot, Handle< Computation > toMe)

bool isTraversed ()

void setTraversed (bool traversed)

std::string getOutputTupleSetName ()

void setOutputTupleSetName (std::string outputTupleSetName)

std::string getOutputColumnToApply ()

void setOutputColumnToApply (std::string outputColumnToApply)

void setAllocatorPolicy (AllocatorPolicy myPolicy)

void setObjectPolicy (ObjectPolicy myPolicy)

AllocatorPolicy getAllocatorPolicy ()

ObjectPolicy getObjectPolicy ()

- Public Member Functions inherited from pdb::Object
void setVTablePtr (void *setToMe)

void * getVTablePtr ()

virtual void setUpAndCopyFrom (void *target, void *source) const

virtual void deleteObject (void *deleteMe)

virtual size_t getSize (void *ofMe)


Additional Inherited Members

- Static Public Member Functions inherited from pdb::Object
static void * operator new (size_t sz, const std::nothrow_t &tag)

static void * operator new (size_t sz)

static void operator delete (void *me)

static void * operator new (std::size_t count, void *ptr)

- Protected Attributes inherited from pdb::AggregateCompBase< OutputClass, InputClass, KeyClass, ValueClass >
Handle< ScanUserSet
< OutputClass > > 		outputSetScanner = nullptr

bool collectAsMapOrNot = false

int numNodesToCollect = 1

- Protected Attributes inherited from pdb::AbstractAggregateComp
int numPartitions = -1

int numNodes = -1

int batchSize = -1

void * whereHashTableSitsForThePartition = nullptr

bool materializeAggOut = false

bool useCombinerOrNot = true


Detailed Description

template<class OutputClass, class InputClass, class KeyClass, class ValueClass>
class pdb::AggregateComp< OutputClass, InputClass, KeyClass, ValueClass >

this aggregates items of type InputClass. To aggregate an item, the result of getKeyProjection() is used to extract a key from on input, and the result of getValueProjection () is used to extract a value from an input. Then, all values having the same key are aggregated using the += operation over values. Note that keys must have operation == as well has hash () defined. Also, note that values must have the

  • operation defined.

Once aggregation is completed, the key-value pairs are converted into OutputClass objects. An object of type OutputClass must have two methods defined: KeyClass &getKey (), as well as ValueClass &getValue (). To convert a key-value pair into an OutputClass object, the result of getKey () is set to the desired key, and the result of getValue () is set to the desired value.

Template Parameters
OutputClass
InputClass
KeyClass
ValueClass

Definition at line 58 of file AggregateComp.h.

Member Function Documentation

template<class OutputClass, class InputClass, class KeyClass, class ValueClass>
virtual Lambda<KeyClass> pdb::AggregateComp< OutputClass, InputClass, KeyClass, ValueClass >::getKeyProjection ( Handle< InputClass >  aggMe)
pure virtual

Gets the operation the extracts a key from an input object

Parameters
aggMe- the object we want to the the operation from
Returns
the projection lambda

Implements pdb::AggregateCompBase< OutputClass, InputClass, KeyClass, ValueClass >.

Implemented in pdb::TopKComp< InputClass, Score, ValueType >.

template<class OutputClass, class InputClass, class KeyClass, class ValueClass>
virtual Lambda<ValueClass> pdb::AggregateComp< OutputClass, InputClass, KeyClass, ValueClass >::getValueProjection ( Handle< InputClass >  aggMe)
pure virtual

Gets the operation that extracts a value from an input object

Parameters
aggMe- the object we want to the the operation from
Returns
the projection lambda

Implements pdb::AggregateCompBase< OutputClass, InputClass, KeyClass, ValueClass >.

Implemented in pdb::TopKComp< InputClass, Score, ValueType >.

The documentation for this class was generated from the following file:
